SUPERMAX+
SuperMAX+ is a configurable and programmable controller that can directly connect two (2) card readers of differnet ID technologies and control the doors via 2 relays and 4 inputs for on-off sensors. It also supports up to two (2) fingerprint readers connected to the RS485 port.
SuperMAX+ operates in online mode connected to the Ethernet-TCP/IP network. It receives, confirms every access request for proper door management. Of course, SuperMAX+ can operate in offline mode by verifying and managing the access rights according to tables in local files where users are organized into groups and assigned the number of time zones or time when their access/passage is approved.
SuperMax+ also has an auxiliary battery that can supplies device with power up to four (4) hours, of course depending on the type of connected readers and the number of transit control transactions.

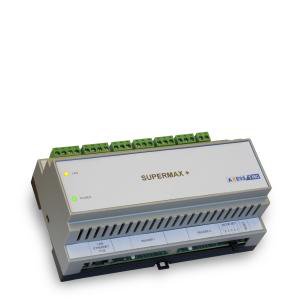

SuperMax+ is available either as a module in a plastic housing with DIN wall mount bracket, suitable for installation in electric control panels or as a electric control panel with connectors attached to both sides and an auxiliary battery mounted on the upper side.
Technical characteristics SuperMAX+
| AUXILIARY READERS | Readers connectors: 2 ClockData interfaces, plus control of 2 LEDs for each reader |
| COMMUNICATION CONNECTORS | Communication connectors: Ethernet: RJ45 connector 10BaseT - UDP/IP. PoE (Power Over Ethernet) type A&B 802.3af compatibility RS232: optoisolated 1200, 2400, 4800 or 9600 Baud. On extractable screw-connector block RS485 (NET92): can be used for master or slave RS485 applications (on extractable screw-connector block) Analog Modem version: speed: nominal 19200bps, 38400 compressed |
| INPUT/OUTPUT | Relay outputs: 2 relays. 1A. 30V. N.O + N.C. Digital Inputs: 4 powered inputs to be connected directly to a switch |
| POWER SUPPLY | 9 to 48 Vdc, 100 mA at 12 Vdc, not including readers |
| BATTERY | Backup battery capacity: 550mAH Average consumption with magnetic reader: 90mA Average consumption proximity readers: 170mA |
| DIMENSIONS | 156 x 100 x 60 (WxHxD) |
| WEIGHT | 250 g |
