BIP 1500

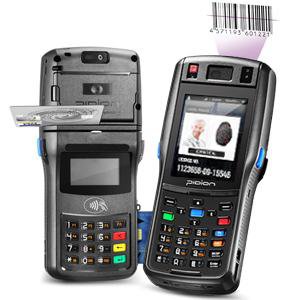

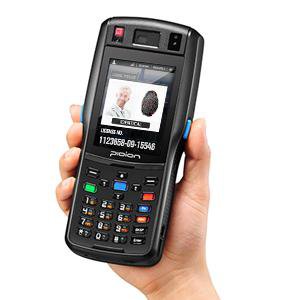

The robust multipurpose handheld computer BIP-1500 series has been intended to meet the growing needs of enterprise mobility (AIDC) and payment method with the choice of 2'' or 3'' thermal printers, multiple data collection capabilities including embedded RFID reader and different payment methods such as MSR, contact payment, contactless payment, PIN transaction and fingerprint reader.
ADVANTAGES
- Smart choice

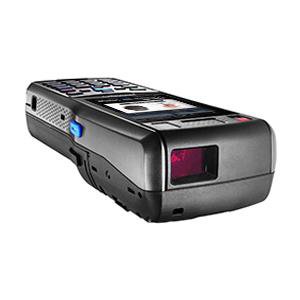

The BIP 1500 Handheld Terminal and its two-sided design enable multiple combinations, giving you more choices of hardware platforms for every job you need. In terms of mobile data collection, a laser scanner ID or 2D CMOS barcode reader, RFID reader and 3 megapixel autofocus camera are available. It has an embedded option of 2 "or 3" thermal printer and a standard battery with four (4) "back modules" options:
1. Payment
2. Finger Scan
3. PIN Pad
4. Back module with extended battery
- Robust integration
The BIP-1500 Handheld Series with integrated printer eliminates potential clumsiness because workers in the field use both a computer and a mobile printer at the same time. The convenience of the All-in-One device is greater because it helps reduce tiredness while wearing and handling the same.
- Simple use
The BIP-1500 series has been produced based on years of experience with a wide range of handheld devices. This series has been designed to withstand adverse weather conditions and meets IP54 requirements and can withstand 12 drops of 1.5m height on the steel substrate.
- Windows Embedded Handheld 6.5, HSPA+, WiFi, Bluetooth, GPS
In the BIP-1500 series with Windows operating system, you can easily install user applications and your device is fully compatible with your office/back office computers. WiFi Bluetooth Option HSPA + or GSM enables users to stay connected to the workers in the field in real-time. It supports 2 SIM card slots and 4 SAM slots that allow you to fulfill all your business obligations or requirements.
ADDITIONAL EQUIPMENT
- additional battery
- protective screen foil
- adapter
- power cord
- USB cable
- pencil
- protective case with a strap on the shoulder
SERVICE
PENTA is the exclusive representative of Pidion mobile POS machines and has been appointed by the manufacturer as a service center for the region of Croatia and the region. Educated and competent service center personnel are always at your service if you need technical support and/or counseling assistance.
GUARANTEE
The device guarantee is 12 months and it is also possible to extend it with the signing of The Over-maintenance Agreement which is certainly a recommendation in the case of a complex system where "on-call" maintenance does not always ensure the continuity of work processes.
Technical specifications
BIP 1500 - "Payment"
| BATTERY | Standard, 7.4V, 2,000mAh, Li-ion |
| PAYMENT OPTIONS |
MSR |
BIP 1500 - "Finger Scan"
| BATTERY | Standard, 7.4V, 2,000mAh, Li-ion |
| PAYMENT OPTIONS | MSR IC Card Reader -Contact (EMV Level 1&2, ISO 7816) -Contactless (ISO 14443 A/B, ISO 18092) |
| FIGERPRINT SCAN | 512 DPI 14.6x18.1 mm / 0.5x0.7 inch |

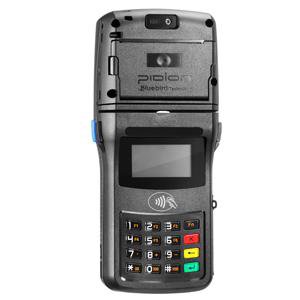

BIP 1500 - "PIN Pad"
| BATTERY | Standard, 7.4V, 2,000mAh, Li-ion |
| DISPLAY | 2", FSTN, 128 x 16 |
| KEYBOARD | 16-key Numeric |
| PAYMENT OPTIONS | MSR IC Card Reader -Contact (EMV Level 1&2, ISO 7816) -Contactless (ISO 14443 A/B, ISO 18092) - PIN Transaction (PCI PTS 3.0 Compliance) |
BIP 1500 - "Extended Battery"
| BATTERY | Extended, 7.4V, 3,000mAh, Li-ion |
A common technical specification of all models
| THERMAL PRINTER | 2” (25mm diameter, max. 90mm/sec) 3” (50mm diameter, max. 60mm/sec) |
| DISPLAY | 3.5” Color QVGA or VGA |
| KEYBOARD | 25-key Numeric or 42-key QWERTY |
| CAMERA | 3 megapixel autofocus |
| GPS | Integrated GPS |
| SIM/SAM SLOT | 2 SIM, 4 SAM Slots |
| MEMORY | 256MB RAM 512MB ROM (optional 1GB) |
| CPU | PXA 320, 806MHz |
| OS | Windows Embedded Handheld 6.5 |
| DROP | 1.5m (5 ft.) |
| RAIN/DUST PROTECTION | IP54 |
| OPERATING TEMPERATURE | -20'C to 55'c / -4'F to 131'F |
| STORAGE TEMPERATURE | -30'C to 70'c / -22'F to 158'F |
| HUMIDITY ALLOWED | 93% non-condensing |
| DIMENSIONS | (BIP1500) 86.8 (min.77.6) x 199.7 x 48.2(min.36) mm (BIP1530) 105.8 (min.77.6) x 250 x 65 (min.36) mm |
| WEIGHT | (BIP-1500) 436g (BIP-1530) 572g * Excluding Back Module and Battery |
| NAVIGATION | 3.8G GSM HSPA+/HSUPA or CDMA EVDO Rev. A 802.11 b/g or 802.11 a/b/g Bluetooth Class II V2.1 + EDR |
| BARCODE READER | 1D laser, 2D imager, or HD image |
