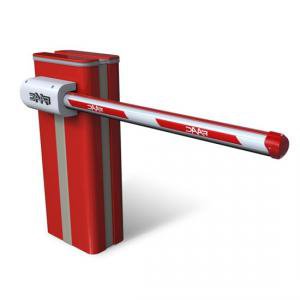

FAAC B680H

"Innovation in action" is the term that best describes barrier B680H which has a hybrid motor, everlasting springs which allows to exceed 2.000.000 cycles of continuus use without special maintenance, raisng 8m arm in less than 6 seconds.

The B680H has an internal load-bearing structure and an external removable housing. This design gives the system great stability and permits easy replacement of the housing. It is available in stainless-steel or steel versions, with the innovative, 100-micron, epoxy zinc

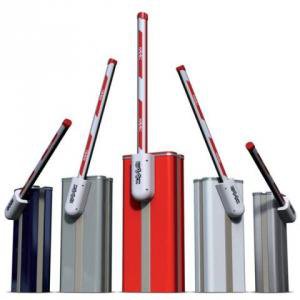

primer anti-corrosion treatment, with four colours available (grey, red, white and blue). B680H is compatible with 620 and 640 base plates.



Result of B680H is extreme flexibility and optimization of logistics. One single model controls passages with a net width from 2 m to 8 m. right or left one, with difference in speed.

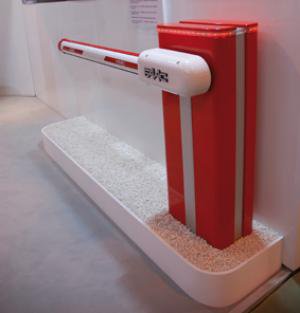

The flashing LED traffic light is entirely integrated into the structure, so it cannot be damaged. The operation of its red and green high-efficiency LEDs may be programmed by the board.

Installing the XBAT 24 module ensures the operation of the B680H even during a black out.

Elliptical design modular arm, windproof, come with a protective rubber, with the speed of raising/opening from 1.5 seconds (electronically adjustable).

The E680 microprocessor control board ensures integration of the B680H with complex control systems. It has numerous programmable outputs and inputs and a connector for GSM, Ethernet and Wi-Fi modules. Two integrated, high-sensitivity Loop Detectors ensure the containment of system costs.

B680H set consists of: barrier with electronics, equipment, absolute encoder, hydraulics system, installation equipment, triangular unblocking key.

MODEL   B680H
ARM LENGTH (m) from 2.3m to 8.3m
OPENING TIME (s) from 1.5s (2m) to 6s (8m)
FREQUENCY OF USE (%) continuous (100%)
CPU embedded E680
PRODUCT CODE 104680

Additional options:

RAL 3020 Red housing
RAL 5011 Blue housing
RAL 9010 White housing
RAL 9006 Grey housing
STAINLESS-STEEL Stainless steel housing



B680H technical specification
POWER SUPPLY 100 to 240 Vac 50 (60)
ELECTROMOTOR Brushless 36Vdc
ABSORBED POWER 240W
APSORBIRANA POWER 1.1 A (a 230V)
MOTOR SPEED 1.000 to 6.000 RPMs
PUMP FLOW 3.2 l/min
ELECTRONIC BRAKE SYSTEM complete encoder
OPERATING TEMPERATURE -20°C to +55°C
WEIGHT 85 kgs (65kgs + 20 kgs housing)
OIL TYPE FAAC HP OIL
HOUSING PROTECTION anticorrosive protection, the zinc-epoxy
PROTECTION LEVEL IP44
ARM TYPE round with protective curbs or predisposition for light

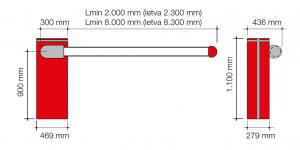

DIMENSIONS 469x279x1100 (w/l/h, mm)
