DIGITAL RECORDERS
Equipment as well as vehicles at parking lots are often subjects of unpleasant situations caused by individuals which has intesified the need and interest in introducing a video surveillance systems over the last few years.
Thanks to the development of digital technology, nowadays it is very simple and profitable to implement a video surveillance system that not only allows the operator to supervise real-time events in the parking lot, but the events are digitally recorded on the hard disk drive, which allows later review on a very easy and simple way – by filtering records by location, time, event or combined.
The system supports one (1) to a maximum of sixteen (16) cameras connected to the computer network of the parking system via LAN network and the stored recordings of the disc recorder are displayed on the computer screen.
We recommend a series of Micro Digital video recorders with hard disk recording, local and remote operation, control over the local area network and the Internet. The recorders have a built-in web server, and there is the ability to create mobile software (iPhone, Android, Blackberry).

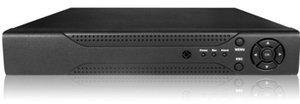

MICRO DIGITAL VIDEO RECORDERS:
- Digital recorders for 4 cameras
- MD 6204 (4-channel real time standalone recorder, Full D1 resolution, 704x76-100 Fps recording, local and remote access: ADSL, Android, iPhone, Cloud, CMS)
- MD 6204 HDMI (4-channel real time standalone recorder, Full D1 resolution, HDMI, 704-576-100 Fps recording, local and remote access: ADSL, Android, iPhone, Cloud, CMS)
- MD – 6304 HVR (Hybrid 4-channel 960H/D1 Digital Video Recorder (DVD/HVR/NVR), built-in video analytics, uses analog and IP cameras, HDMI output, ADSL, Android, iPhone, Chrome, IE, Firefox, Safari...)
- Digital recorders for 8 cameras
- MD-9508U (8-channel digital recorder, local and remote access: ADSL, Android, iPhone)
- MD 9508PK (8-channel digital recorder, local and remote access: ADSL, Android, iPhone)
- MD M-6008 HVR Mini (Hybrid 8-channel Digital Video Recorder (DVD/HVR/NVR), built-in video analytics, uses analog and IP cameras, HDMI output, ADSL, Android, iPhone, Chrome, IE, Firefox, Safari...)
3. Digital recorders for 16 cameras

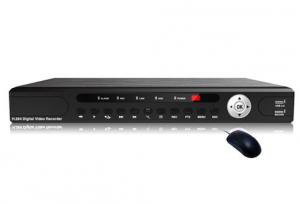

- MD-9516U (16-channel digital recorder, 400 fps/D1 recording, local and remote access: ADSL, Android, iPhone
TEHNIČKE KARAKTERISTIKE MD-9516U
VIDEO SYSTEM | NTSC / PAL |
GUI OSD | YES |
VIDEO INPUT/OUTPUT | BNC 16CH In / 2CH Out, VGA 1CH Out, HDMI 1CH Out |
AUDIO INPUT/OUTPUT | RCA 16CH In/ 1CH Out |
ALARM INPUT/OUTPUT | Alarm 16CH In/ 1CH Out |
RESOLUTION | 720 x 480 ( NTSC ), 704 x 576 ( PAL ); Playback resolution: CIF x 16 / D1 x 1 |
MAX.REC.RATE | CIF:352×240 with 480 Fps (NTSC); 352×288 with 400 Fps (PAL), (PAL) D1:720×480 with 400 Fps (NTSC); 704×576 with 480 Fps |
PICTURE QUALITY ADJUSTMENT | Supper Best, Well, Good, Medium, Normal and Bad |
HARD DISK | Support 2 SATA HDD, unlimited for the capacity |
MULTIPLEX OPERATION | Live display/ record/ playback/ backup/ network transmit |
RECORDING MODE | Manual/ Timer/ Motion |
PLAYBACK | Multiple slow and rapid play speeds, manual and single-frame play modes, and support of drag the sliding bar to set |
BACKUP DEVICE | USB flash disk / Network |
PRE-ALARM REC. | Recording for 10 seconds before alarming |
ETHERNET REMOTE VIEW | Support remote surveillance up to 10 users simultaneously |
VIDEO ADJUSTABLE | Hue /Saturation /Contrast /Brightness adjust |
DIMENSIONS | 405×325×65 mm |
WEIGHT | 6 kg |
OTHER | Mobile phone View, PTZ Control (built-in RS-485 port), Log record function, Image Tour, CMS software, Power-down recovery function, Key Lock(Password Protection), USB Mouse |
