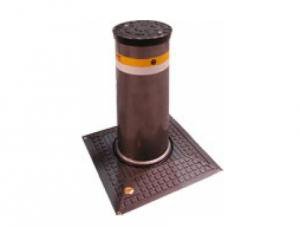

VIGILO 250

If you`re looking for reliable and efficient solution for preventing passage of unauthorized vehicles, while not obstructing the passage of pedestrians or disturb the environment with design, then the Vigilo 250 parking bollard is the best choice for you.

They are very suitable and good choice to prevent access in city centers and squares with limited circulation of vehicles, pedestrian zones and residential areas, or in all area where it`s not possible to install one of the classic systems such as barriers, gates or chain.

VIGILO 250 raises up to a height of 500 mm, it`s durable on impact of 5.000N, bollard is protected by a rubber and when bollard is lowered, it is in line with pavement so there`s no obstacle for vehicles or pedestrians.

Lifting bollard is controlled by the central unit which has a capacity of simultaneous control up to four (4) bollards.
Bollards can be controlled in three different modes:

- manually

- semi-automatic

- automatic

Manual control means using remote control, push button, or using the mechanical key.

Semi-automatic mode means that bollard is raising just after lowering and passage of vehicle all thanks to the built-in timers that after a certain period of time check the status of safety sensors (photocells or loop) and raises the bollard, of course only if in that moment there is no vehicle over the bollard.

In automatic mode bollard automatically lowers and raises at defined daily time periods.

This system is expandable with additional options depending of user requirements and environment where it will be installed. Options include safety sensors, traffic light subsystem and bollard control via GSM mobile phone or contactless cards.

Installation of bollard is simple, without major construction work, as well as maintaining is simple because of it`s design in a way that hydraulic power unit is easily accessible, it works excellent in all weather conditions and was tested at temperature range of -20° C to + 80° C.

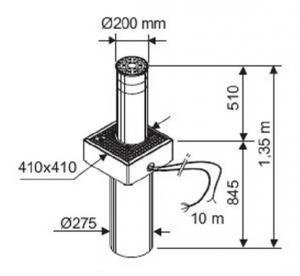

VIGILO 250  technical specification
DIMENSIONS 200 mm bollard diameter
4 mm bollard wall thickness
500 mm bollard lifting height
TEŽINA 102 kgs
CONSTRUCTION MATERIAL Fe360 steel
Hot dip galvanized steel
RAL7016 powder coating and painting powder
reflective layer color
hydraulic pump motor and actuator
FREQUENCY OF USE for intensive use
1 cycle=38s
95 cycle/hour
270.000 cycle/year
LIFTING TIME 4 s
LOWERING TIME 4 s
OPERATING TEMPERATURE -20°C up to +80°C
POWER SUPPLY 230V AC, 50Hz, 330W, 1,8A
PROTECTION LEVEL IP67 for all mechanical elements
OPTION Remote radio receiver and RF antenna, safety sensors (photocells, inductive loop), GSM or RFID controller, flash, electronic control traffic lights
OPTION rechargeable battery with battery charger for use in case of power failure
