SUPERPARK INMOD

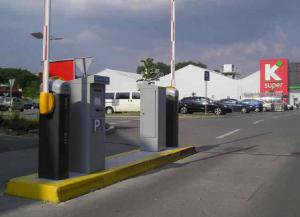

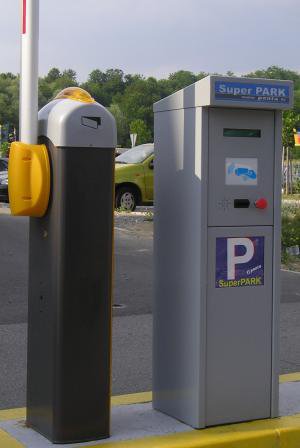

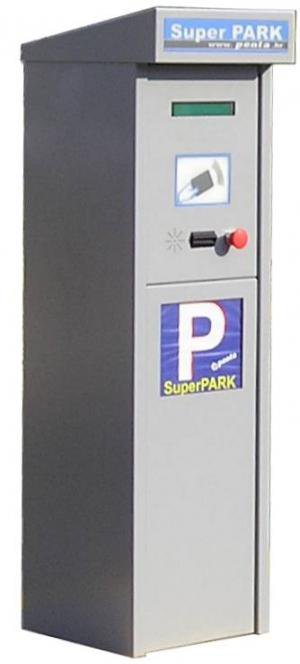

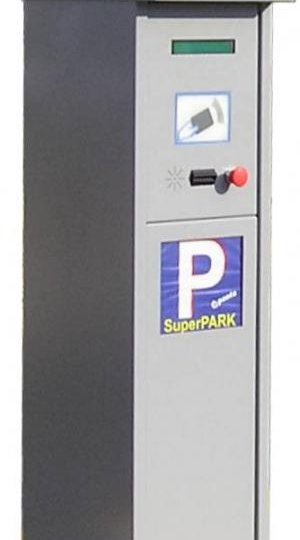

SuperPARK INMOD is a freestanding parking machine, newly generation of control machines for entry into the public garages or closed parking slots.
SuperPARK INMOD allows the issuance of parking ticket at driver's request but only if the vehicle stops near parking machine. Pressing the button at parking machine, driver takes parking ticket and park system raises entry arm barrier. Drivers with prepaid parking card (magnetic and contactless chip or card) are being identified approching it near card reader, and if the card was valid, park system opens the entry barrier.
The SuperPARK INMOD parking machine supervises the barrier and the set of sensors (inductive loop vehicle detector, photocells, traffic lights...), but also automatically lowers arm barrier when vehicle passes.
SuperPARK INMOD has the ability of working in independent (OFF-LINE) and networked (ONLINE) mode. In networked mode, all information and parking machine status are being transmitted to central computer via LAN. Therefore, central computer gives the machine return authorization of ticked or card. If the machine doesn`t receive feedback from central computer or the parking machine is programmed to work independently, then all the information and status are being stored in parking machine`s memory in order to perform subsequent analysis or post data transfer to central computer, furthermore the parking machine performs all functions autonomously.
SuperPARK InMOD FEATURES:
- issuing paper parking ticket with barcode, up to 420 users per hour
- prepaid parking cards validity control and simple clearing of jammed cards
- monitoring and management of barrier operating
- integrated system of presence control vehicles
- displaying messages on screen in multiple languages
- complete ticketing control
- Data transfer from central PC system
SuperPARK InMOD Technical Characteristics | |
CPU | ZxFailSafex86, 32bit, 333MHz |
MEMORY | 128 MB RAM + BIOS EEPROM 2 GB FLASH DOC RAM up to 10,000 transactions storage |
DISPLAY | LED display 2x20 charac.ili LCD 6.5'' res.VGA640x480 (option) protective, anti-reflective window |
BUTTONS | 1x vandalproof button |
SPEAKER | 2W voice messages or intercom local communication |
INTERFACE | RS-232C, RS-485, TCP/IP LAN GSM/GPRS/WLAN (option) |
READER/WRITER | magnetic or contacless cards |
HOUSING | 3mm steel sheet, rounded corners, powder coated or stainless steel design weather resistant |
PRINTER | ELTRA or KPM-54, thermal 32KB mem.buffer, 1 ticket/sec self-sharpening paper cutter sensor of tank paper status sensor of issued ticket status |
PAPER | thermal, fan-fold 5000 pcs/box 54x80mm, debljine do 220g/m2 |
POWER SUPPLY | 220V AC/1,5A |
UPS | accu-battery 550VA |
OPERATING TEMP. | -15°C / +70°C thermo fans 2x120mm heater with thermostat 60W |
HUMIDITY | 10%-95%, non-condensing |
