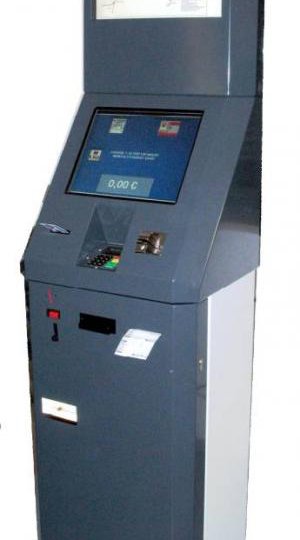

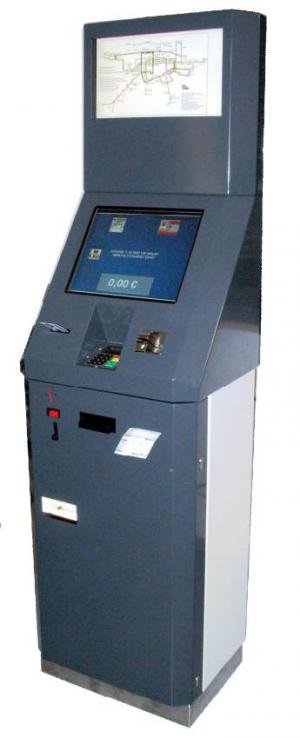

ACASSA M4

ACASSA-M4 is a self-service kiosk characterized as multimedial, multilingual and multifunction machine which thanks to its technology  can be used in sales, ticketing, selling events tickets and participation in loyalty program. The main feature of this machine is the ease of use the touch screen and intuitive user guidance, instructions on the screen in form of animation.

ACASSA-M4 provides sale of parking tickets in a simple and secure manner without need for additional work force. Whether it is the contactless card or paper one, SuperPARK ACASSA M4 allows users payment of parking tickets or renewal of an existing prepaid parking smart cards, but also accepting as legal coins and banknotes HRK and/or credit/debit card.

The Kiosk advantages in parking systems are multiple: quick and easy payment, payment of parking tickets by cash or credit cards thus reducing crowds at toll booths, counters, kiosk working time is 0-24 (including Sundays, holidays ...), there is no need to hire additional operators, security levels of kiosk provide easy operations, modular construction and production allow quick and easy service, and programmatic adjustment of working mode as also the choice of different accessories and options, personalization by the request of parking slot owner...

Windows 7 Embedded operating system with software support allows remote control of kiosk, but also on-line status monitoring and remote control of advertising contents at LCD display, provided that Kiosk has access to the local (Intranet) and/or global (Internet) network.

Kiosk has the option of UPS uninterruptible power supply installation in case of power failure.

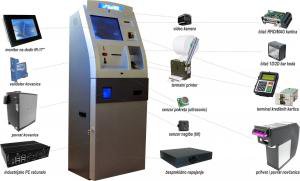

KIOSK FEATURES:

- paper parking tickets sale (for other purposes use also - for example printing event tickets etc.; printing can be made by partly cutting - perforation)

- smart card renewal and complement

- system use in multiple languages for communication with user

- coins, banknotes, cards (monetary/prepayment/credit) acceptance

- money overpaid refund

- completely monitoring the cash flow and ticketing

- data transfer to/from central PC system



ACASSA M4 technical characteristics
CPU IntelATOM D520, 1.6 GHz
MEMORY 1 GB RAM + BIOS EEPROM
8 GB CF memory
10.000 transactions store
OS Windows 7 Embeded/Pro
DISPLAY TFT 17'', resolution 1200x1024, touch screen, SAW technology with vandalproof 6mm protective glass
INFO TFT 19'' resolution 1200x1024, with 5 mm protective acryl glass
CONN. RS-232C, RS-485, Ethernet LAN, option WLAN WiFi ili 3G GSM
READER combo mag.card & chip card or contactless RF Mifare ISO14443A
ACCEPTANCE coins 0,50 kn, 1kn, 2kn and 5kn
capacity 1500 pcs coins
banknotes 10kn, 20kn, 50kn and 100kn
capacity 500 pcs banknotes
REFUND coins 0,50kn, 1kn, 2kn, 5 kn
capacity 500 pcs coins
banknotes 10kn, 20kn, 50kn i 100kn
capacity 80 pcs banknotes
CASING modern designed robust metal construction, thermal coating in RAL 9006 white aluminum metallic color or other by choice
sealing system: protection from the atmospferics, for semioutdoor use
PRINTER thermal printer
PAPER thermal roll or fan-fold
ALARM sound 100dB, signal by the connection to the central
POWER SUPPLY 220V AC/1.8A ili 24V DC/4A
UPS option
OPERATING TEMP. 0° to +60°C
HUMIDITY 10% - 90%, non-condensing
DIMENSIONS 2.150x550x660mm, weight 70-82kgs
