STOP&GO MOBILE BARRIER
Stop&Go mobile barrier developed with complete respect for current European standards of reference, CE branded and patent protected. This is the mobile barrier that has revolutionised the way of closing off limited traffic zones and pedestrian areas, allowing easy access to authorised vehicles, and quickly freeing the way for emergency vehicles.
Developed with specific dimensions for the best possible closure of small passageways: the flower box rotates and moves to the side, parallel to the direction of traffic, always and in any case guaranteeing sufficient space for the transit of the vehicle.
It can also be combined with a mobile flower box, fixed flower boxes and waste baskets from the same line, making a simple road closed off to transit a practical and functional, well-equipped space.
The mobile barrier is composed of a rotating metal element with octagonal plan, which contains the electro-mechanical device and a mobile furniture element consisting in a flower box made in a cement and marble grit conglomerate, connected to each other by a movement mechanism, which also includes a wheel housed under the fl ower box itself.
STOP&GO AUTOMATIC
Equipped with an independent acoustic and light traffic signal system, automatic opening in the event of a power outage and manual unlocking for emergencies. Works with remote control in the standard version, and is available with other control systems depending on client needs. The metal structure is fi nished with a corrosion-proof protective
treatment, involving galvanizing and powder coating in an oven using polyester coatings for the outdoors.

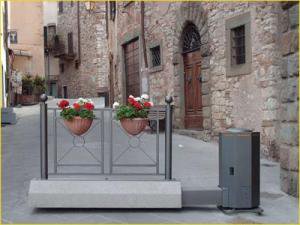

STOP&GO MORE AUTOMATIC
The above mentioned performance of mobile barrier is the same technical characteristics, but the difference is in the movable element where instead of pots filled with flowers, there`s fence, so-called. carts installed.

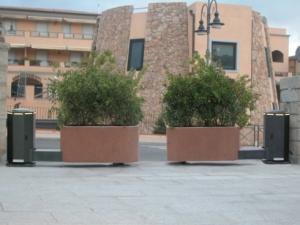

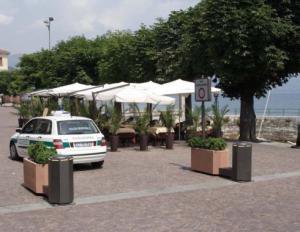

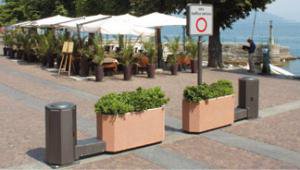

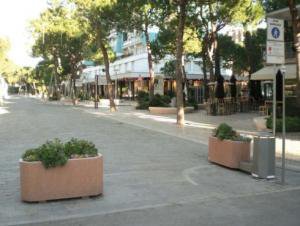

STOP&GO EXAMPLES OF INSTALLATION:
1. Mobile double
2. Fixed double side + mobile side
3. Mobile central and fixed side
4. Mobile double with trolley and built-in to footpath
5. Fixed side and mobile side
6. Mobile single side
7. 180° rotation barrier
8. Fixed central + mobile side
STOP&GO Technical Characteristics | |
PROTECTION LEVEL | IP54 |
OPERATING TEMP. | -20°C min., +55°C max. |
SPEED | 28 sec. (rotation 90°) |
POWER SUPPLY (CONTROL BOARD) | 230V - 50/60Hz |
POWER SUPPLY (MOTOR) | 24V, 230V (with thermal protection device) |
POWER | 240W, 450W |
EL.INPUT | 12A max., 3A |
TOTAL WEIGHT | 485 kg |
DIMENSIONS | l 200-220 cm, w 50 cm, h 61 cm, 90 cm (ver1) l 230-250 cm, w 50 cm, h 95 cm, 75 cm (ver2) |
) |
