SUPERGLASS 7

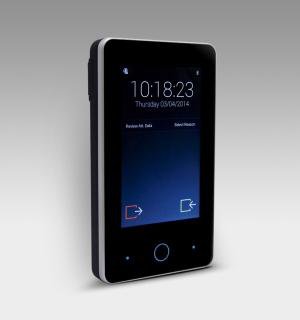

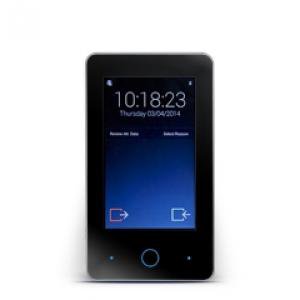

SuperGLASS 7 is a time and attendance terminal, stylishly designed, uses innovative technologies, easy to use and gives the elegance to every environment. The SuperGLASS 7 is the first 7'' display terminal with advanced features that can be adapted to user's requirements in order to create ideal access control system and achieve the desired level of security for each organization.
The durable color screen, respectable in size, not only displays time attendance records, but also greeting messages, messages for visitors, promotional images or informations about company/organization.
Configuration and access to the SuperGLASS 7 terminal is simple and feasible from any web browser. Terminal also includes the T&A (Time And Attendance) application which makes this device an ideal solution, ready for use in every comany/organization. Data collected by SuperGLASS 7 that is exchanged with a data server is stored and protected by a secure HTTPS connection that guarantees integrity and, mostly importantly, data security.
Also, SuperGLASS 7 is equipped with features such as VOIP with video, audio tracks releasing, Text-to-Speech, video streaming and battery capacity that allows the terminal to perform operative actions even during the power failure. The SuperGLASS 7 also offers an optional package - an application that includes audio/video over IP and sending public or private messages that are displayed on the screen and for which user can be asked for a read confirmation.
ADVANTAGES:
- display capacity
- ready-to-use thanks to the embedded application for time and attendance and access control systems
- simple configuration and web access, compatible with X1, X2 readers of the same manufacturer
- Server/Client FTP connection for automatic data transfer
- a durable battery that provides continuous work during power failure
Technical specifications SperGLASS 7
INTERFACE | 7-inch 800x480 pixel LED display, back-lit, capacitive touch screen technology |
PORTS | Three 2.0 USB host ports (2 internal and 1 external) - One Ethernet 10/100 POE A&B compatible One RS232 serial at EIA levels One RS485 with possibility to extend the I/O piloting up to 4 NeoMAX/AX MAX each with 2 inputs and 2 relays |
READERS | Internal RFID reader in all technologies supported by TMC: 125 KHz EM4102 compatible (double-headed reading) 125 KHz HID HID iClass DESFIRE (NO SAM – secure access module) 13.56 MHz Read/Write multi-standard ISO14443/15693 (with Mifare) 13.56 MHz Read/Write high-security multi-standard technology with Legic Advant ISO14443/15693 Optional external readers: RFID or magnetic or barcode strip – USB for memory stick or barcode scanner |
INPUT/OUTPUT DEVICES | Two 1A 30V configurable relays: Normally Open or Normally Closed Two opto-isolated digital inputs for clean contacts |
POWER SUPPLY | POE or electric power: 12….48 VDC 5…7W (up to 10W during fast battery charge) Backup battery: operating autonomy of 2 hours in the event of power outage |
OPTIONS | Internal WiFi 802.11 b/g module - GSM / GPRS modem - Memory stick (USB) |
AUDIO | 1W mono-speaker with WAV and MP3 file playback - Microphone for recording audio fi les |
SW | Embedded data collection application for access control and T&A tracking Windows Embedded Compact 7 - .NET Compact framework 3.5 Server and FTP Client with possibility to automatically copy fi les to and from another FTP server Web server IE7 jscript and vbscript compatible - VOIP (Voice Over IP) Telnet - Remote desktop client - Internet browser |
HW SPEC. | Cortex-A8 processor at 600 MHz 256 MB RAM and 256 MB fl ash (90 MB available as expandable to internal fl ash disk Keyfob USB) |
DIMENSIONS, WEIGHT | Dimensions: 132 x 230 x 41 mm (H x L x W) - Weight: 800 grams Housing: ABS V0, self-extinguishing, IP55 |
